N-Female Directional Couplers, 600 - 4000 MHz—
$99.00

The Story

Waveforms line of Directional Couplers unevenly split signals between 600 MHz and 4 GHz with minimal reflection or loss.

These couplers can be used to "daisy-chain" antennas instead of home-running each antenna back to the amplifier. They are compatible with 3G, 4G LTE and 5G Distributed Antenna Systems (DAS) and cell phone signal boosters.

The "coupling" figure is ratio of the coupled output to the input.

Specifications

  • Frequency Range: 600 - 4000 MHz
  • Impedance: 50 Ohm
  • Cavity: Silver plated aluminum
  • Conductor: Silver plated copper
  • VSWR: ≤ 1.25
  • PIM: ≤ -150 dBc
N-Female Directional Couplers, 600 - 4000 MHz - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

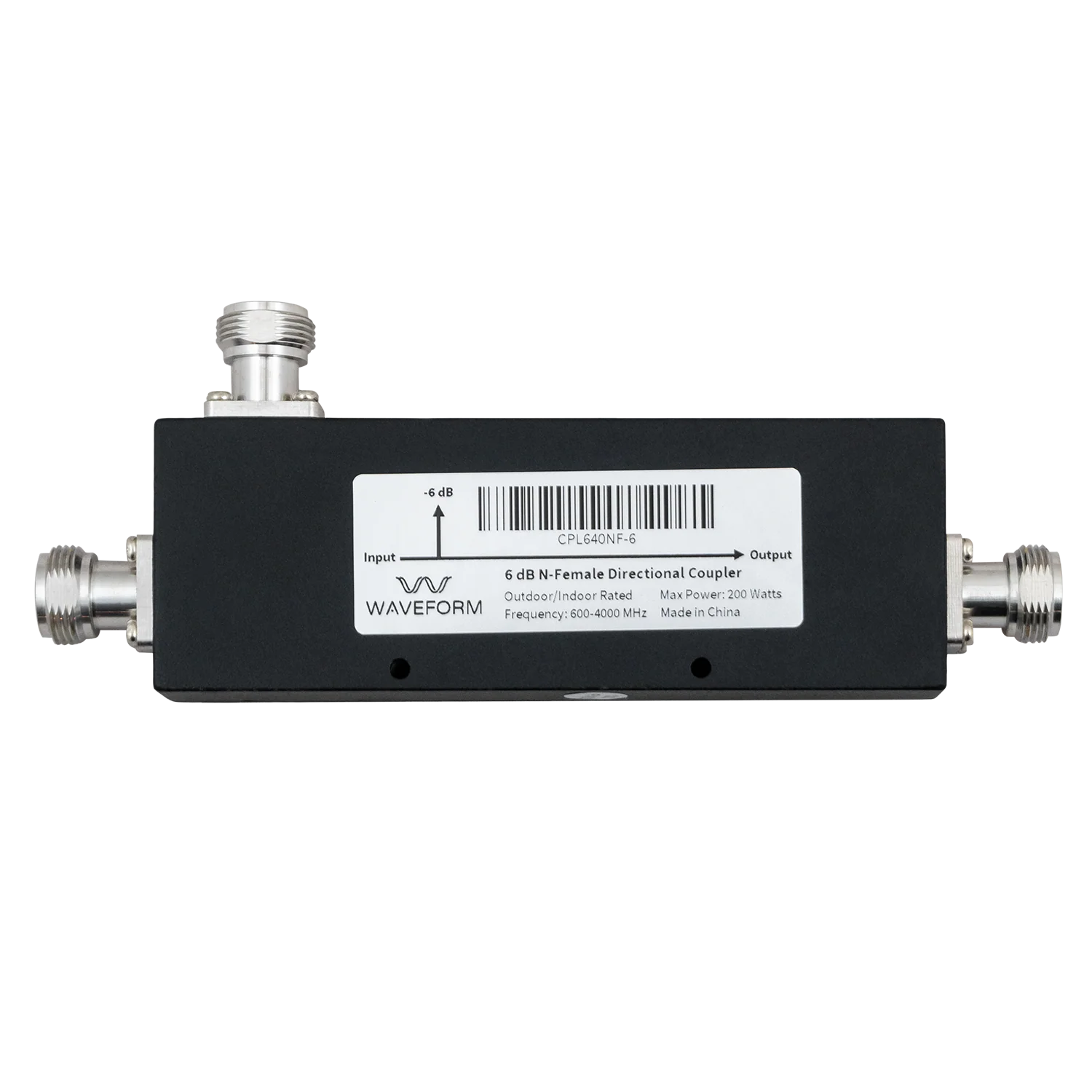

N-Female Directional Couplers, 600 - 4000 MHz - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

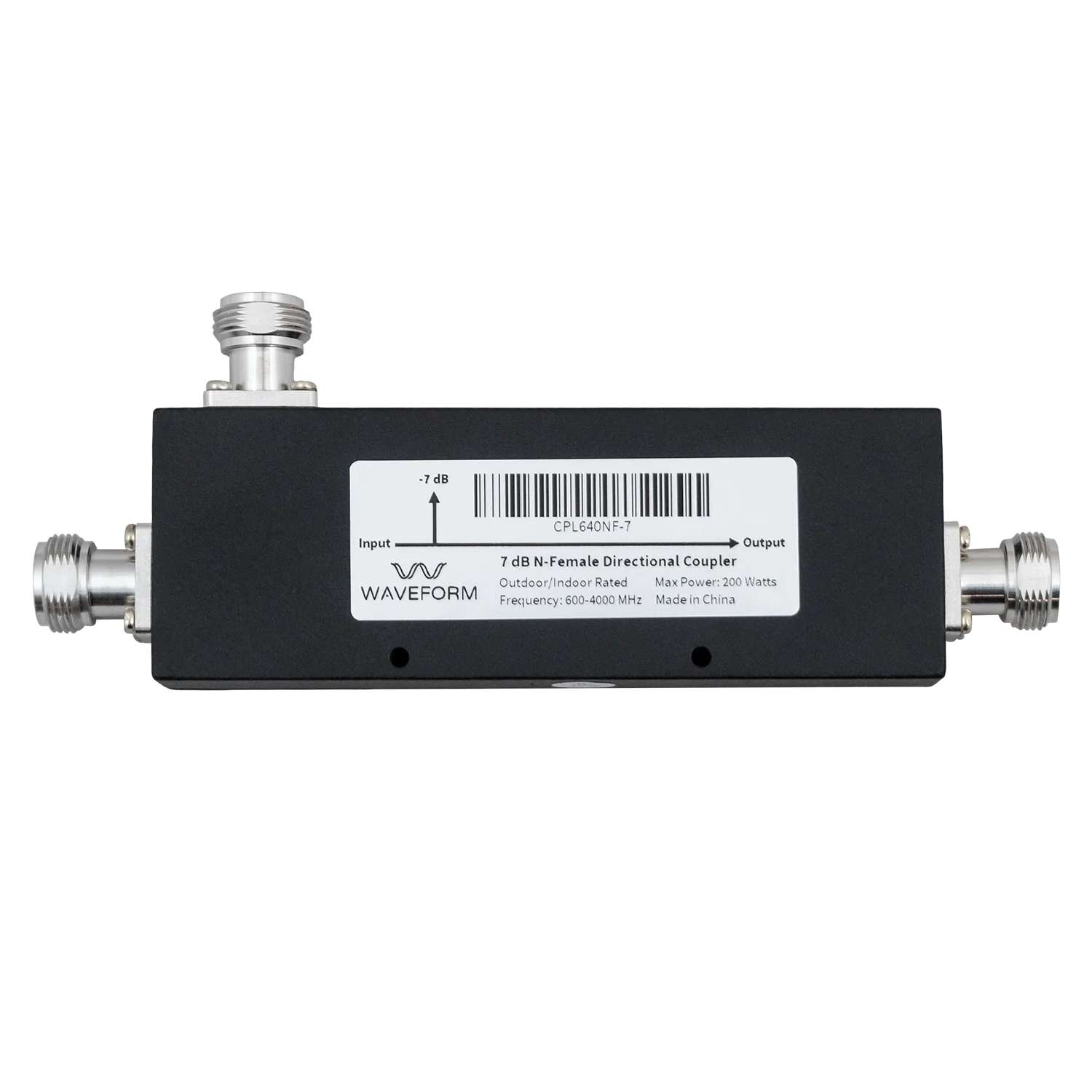

N-Female Directional Couplers, 600 - 4000 MHz - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

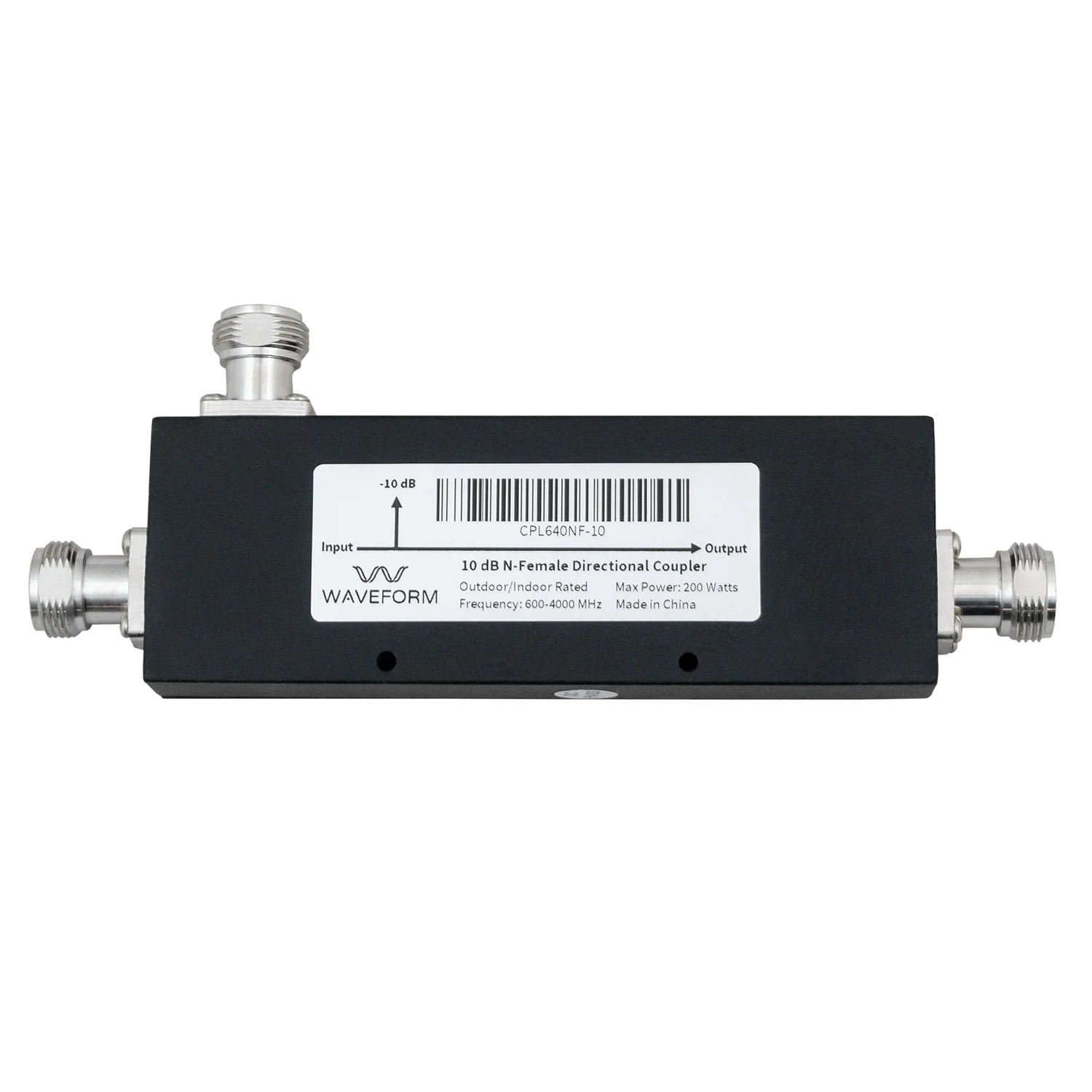

N-Female Directional Couplers, 600 - 4000 MHz - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

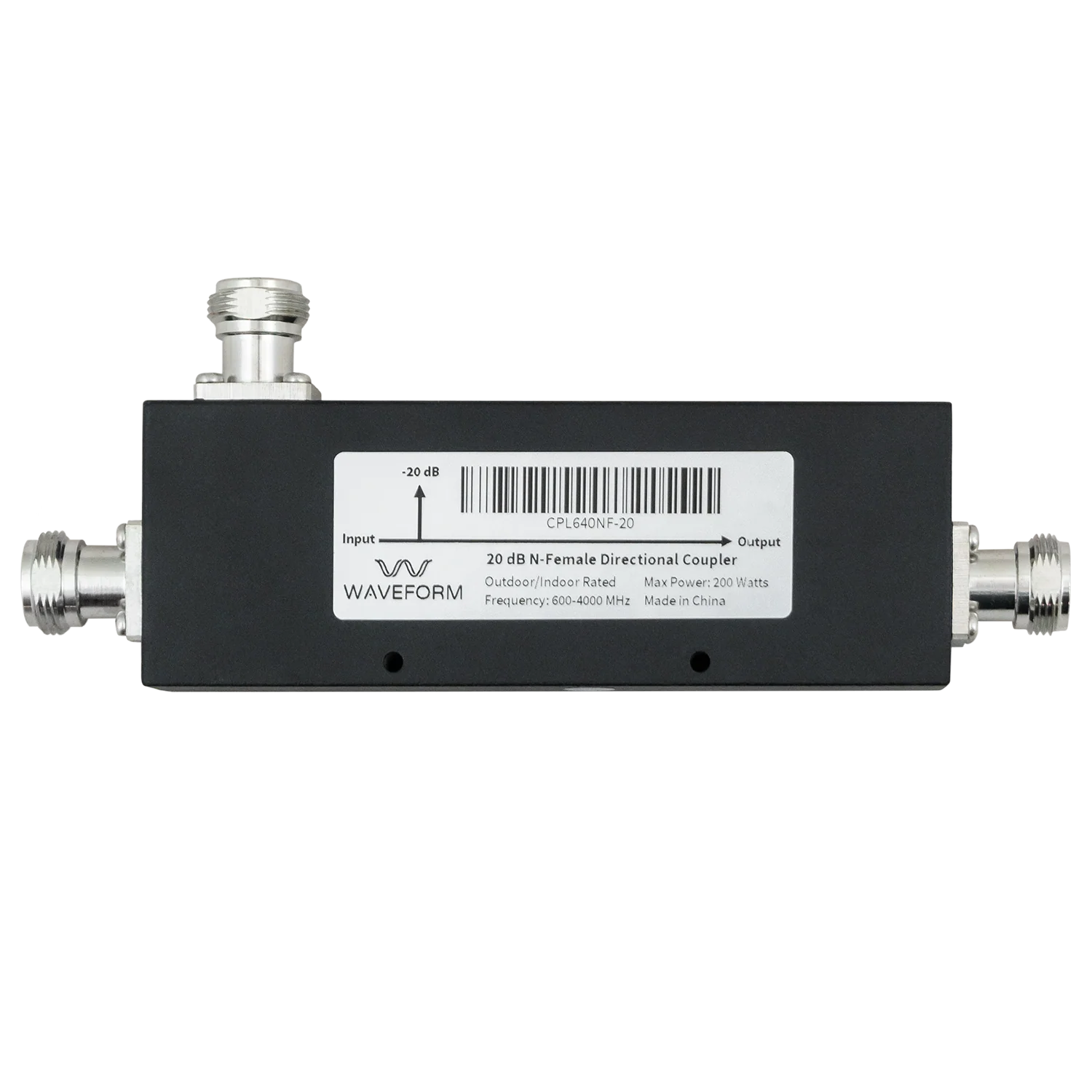

N-Female Directional Couplers, 600 - 4000 MHz - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Waveforms line of Directional Couplers unevenly split signals between 600 MHz and 4 GHz with minimal reflection or loss.

These couplers can be used to "daisy-chain" antennas instead of home-running each antenna back to the amplifier. They are compatible with 3G, 4G LTE and 5G Distributed Antenna Systems (DAS) and cell phone signal boosters.

The "coupling" figure is ratio of the coupled output to the input.

Specifications

  • Frequency Range: 600 - 4000 MHz
  • Impedance: 50 Ohm
  • Cavity: Silver plated aluminum
  • Conductor: Silver plated copper
  • VSWR: ≤ 1.25
  • PIM: ≤ -150 dBc
