The Story

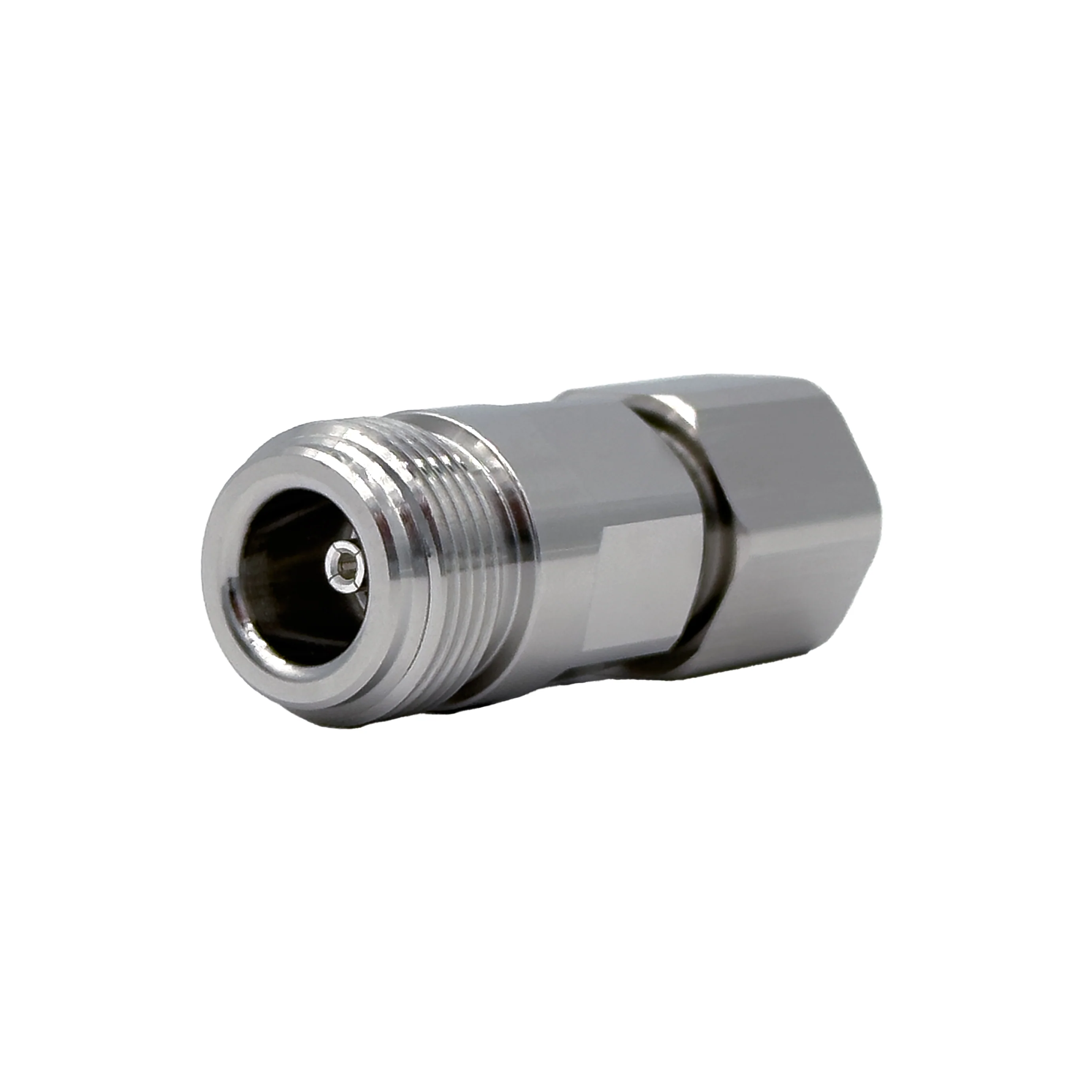

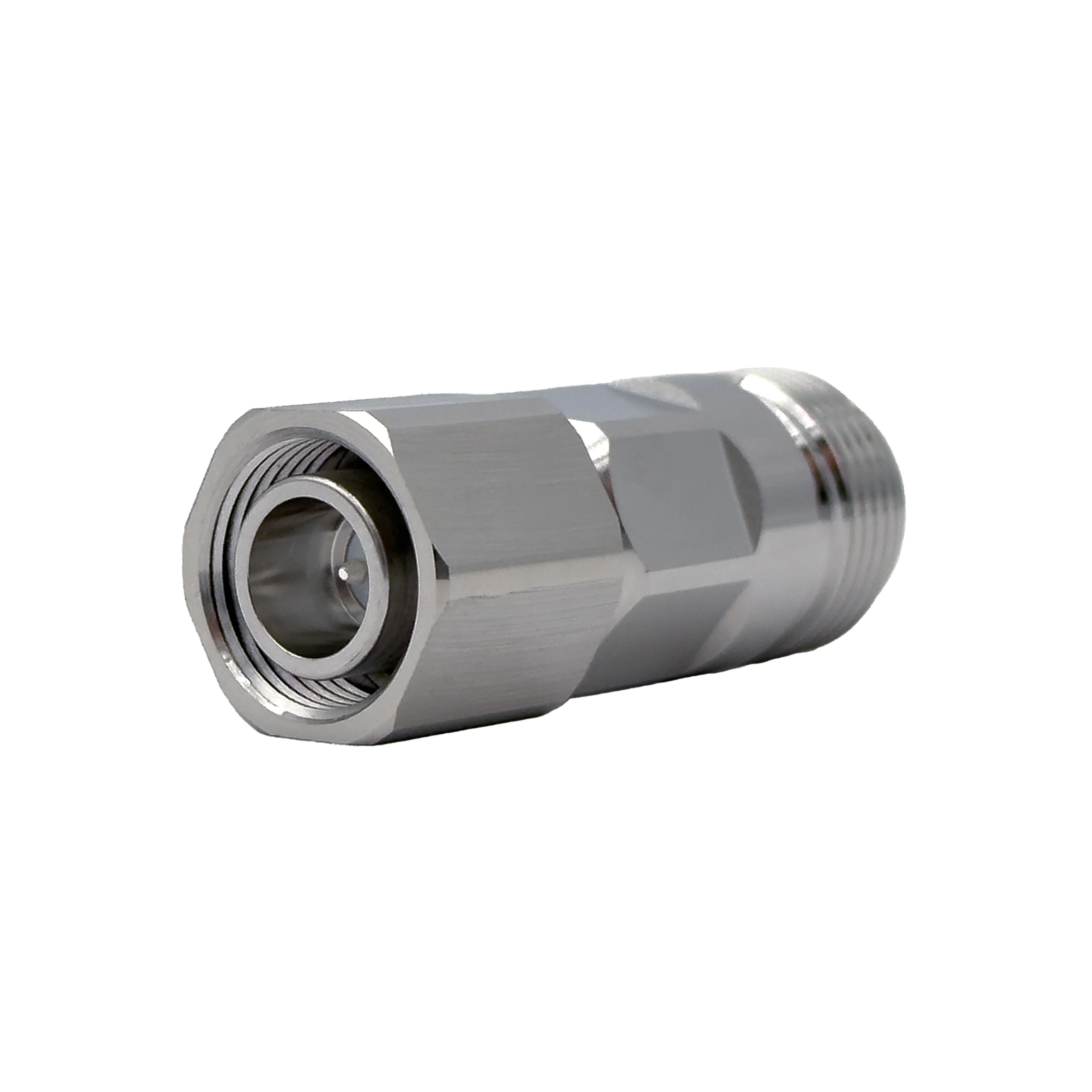

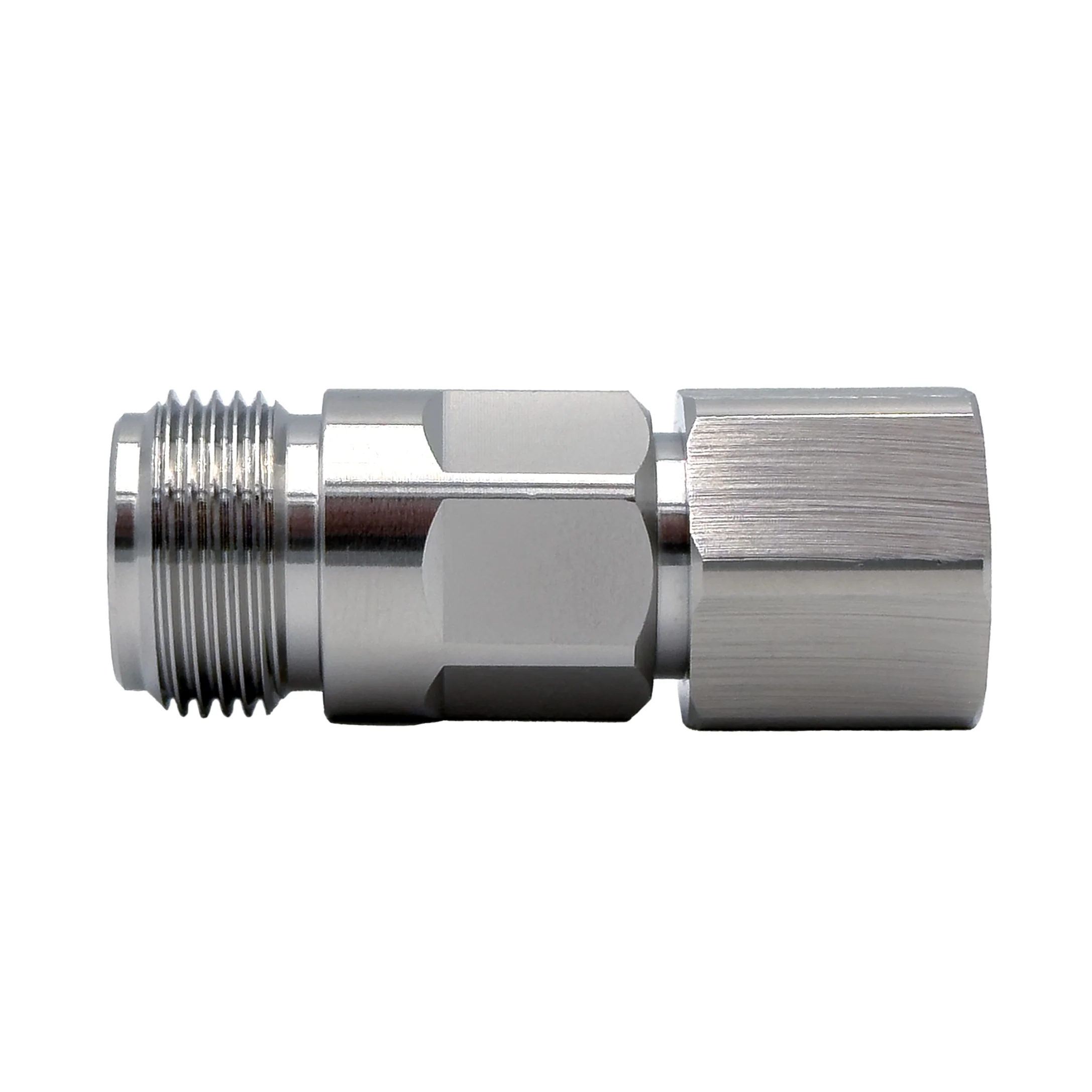

These 2.2-5-Male to N-Female adapters are built with a silver-plated brass body, a PTFE dielectric, and a silver-plated brass conductor, ensuring low insertion loss and optimal performance across frequencies up to 6 GHz.
With a VSWR of ≤ 1.15 and a 50-ohm impedance, and a robust design rated for temperatures from -40°C to +85°C, they provide a dependable solution for minimizing signal loss and maintaining network integrity.
They are primarily used for connecting equipment with the more common N-Male connector to the 2.2-5-Female ports of the new 5G Verizon Network Extender.
Specs
- N-Female to 2.2-5-Male connectors
- 42 mm (1.65 inches) long, 16 mm (0.630 inch) diameter
- 50 Ohm impedance and ≤ 1.15
- Less than 0.22 dB insertion loss and low PIM
- Made of silver-plated brass body and conductor with a PTFE dielectric
- Rated for use at frequencies up to 6 GHz.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
These 2.2-5-Male to N-Female adapters are built with a silver-plated brass body, a PTFE dielectric, and a silver-plated brass conductor, ensuring low insertion loss and optimal performance across frequencies up to 6 GHz.
With a VSWR of ≤ 1.15 and a 50-ohm impedance, and a robust design rated for temperatures from -40°C to +85°C, they provide a dependable solution for minimizing signal loss and maintaining network integrity.
They are primarily used for connecting equipment with the more common N-Male connector to the 2.2-5-Female ports of the new 5G Verizon Network Extender.
Specs
- N-Female to 2.2-5-Male connectors
- 42 mm (1.65 inches) long, 16 mm (0.630 inch) diameter
- 50 Ohm impedance and ≤ 1.15
- Less than 0.22 dB insertion loss and low PIM
- Made of silver-plated brass body and conductor with a PTFE dielectric
- Rated for use at frequencies up to 6 GHz.
